Description of 1.8m3 self loading mixer
Hm-1.8m3 自装式混凝土搅拌车 is a small concrete mixing 设备 with the capacity of 1.5 cubic meters per batch. It takes about 8 minutes from loading the material to discharging the concrete.Hm-1.8 Self Loading Mobile Concrete Mixer Is Much More Efficient Than Hm-1.2 Self Mixer, It Can Help You Save Three Labors Costs Which Is Very Cost-Effective
Power Type：发动机
Wide Application Area:It is widely used for small and medium construction projects, such as road construction and repair, rural building, factory construction, tunnel, canal, and other projects requiring concrete.

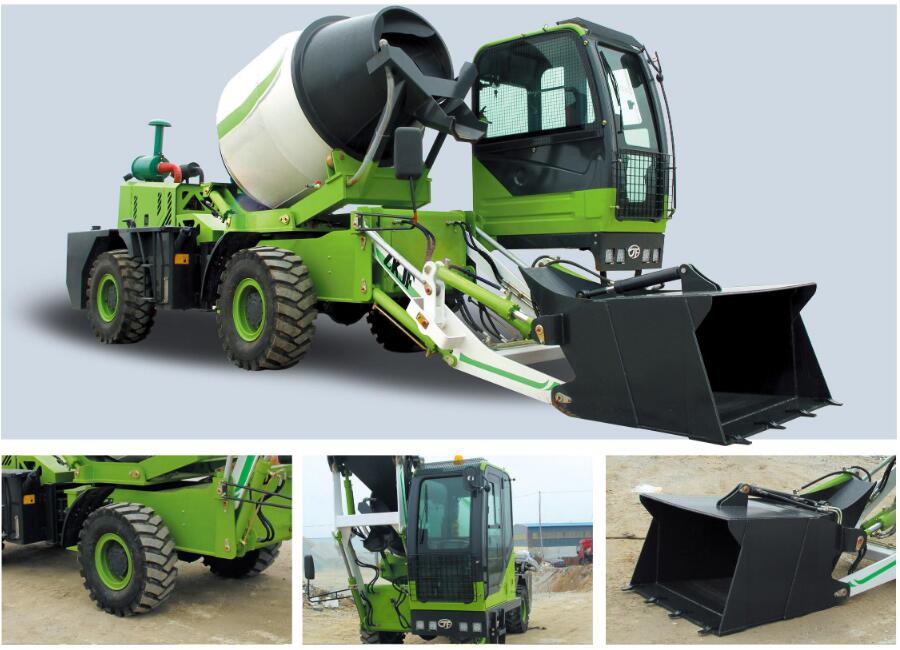

Advantages Of 自装式混凝土搅拌车
- 1. Inner structure. We adopt national standard parts, can totally meet your demands.
- 2. Mixer tank. It can rotate at 270 degrees, so it can discharge concrete at 270 degrees, which is very convenient to place concrete.
- 3. Self loading design. It can automatically self loading, mixing, measuring and discharging.
- 4. Driving cab. There is only one person in cab. so it means when working, only need to employee one worker.
技术参数:
| 整车参数 | |

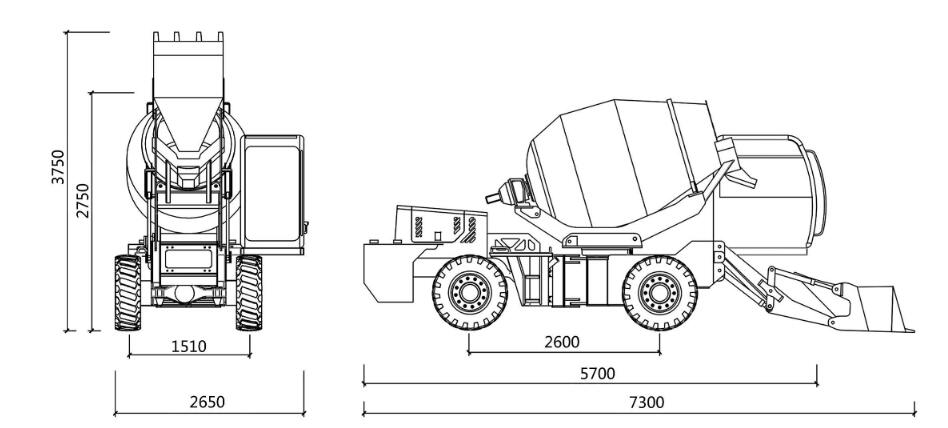

| 外形尺寸 (L × W × H) | 7300x2650x3750 |
| 轴距 (mm) | 2600 |
| 整备质量 (kg) | 5666 |
| 驱动形式 | 变矩器 |
| 最高车速(km / h) | 30 |
| 最大爬坡度 | 30° |
| 最小转弯半径 (mm) | 5270 |
| 最小离地间隙 (mm) | 280 |
| Gearbox | |
| model | ZL-265 |
| Gearshift | 4 forward 4 back |
| 维护加注量 | |
| 燃油箱: | 63 liters |
| 液压系统总容量: | 63 liters |
| 机油: s | 16 liters |
| 发动机 | |
| 型号： | Yunnei 490 Turbo-charged |
| 额定功率: | 55kw |
| Optional Engine | Yuchai 4102 Turbo-charged |
| 额定功率: | 78kw |
| 常规参数 | |
| 设备 型号： | JBC-18 |
| 液压系统参数 | |
| 减速机: | HJ80-43 |
| 泵: | CBFC 50/40 |
| 马达: | BM5-160 |
| 供水系统参数 | |
| 水箱容积: | 400L |
| 供水方式: | 时间续电器 |
| 搅拌和卸载 |
| 双锥形滚筒拥有双螺旋形搅拌螺杆和中凸底部。. 滚筒几何容量: ..................... 2680L 滚筒旋转速度: .................... .13 rpm 混凝士产量: ............... 1.8 m3 / Batch The counterweight mounted on the heavy duty saddle can be hydraulically slewed at 270 ° and automatically locked by a hydraulic brake. The drum rotation is achieved by gear pump and cycloidal 马达 in open circuit with a manual electric valve in the driver's cabin and in the rear of the mixer. The drum rises to horizontal position through two double-acting jacks. The unloading chute is tilted by a manually adjustable handle and can be rotated by 90 °, but can not be synchronized with the tilting operation of mixing drum. Removable chutes ensure unloading directly through the hopper. Two chute extensions are provided as standard. |
