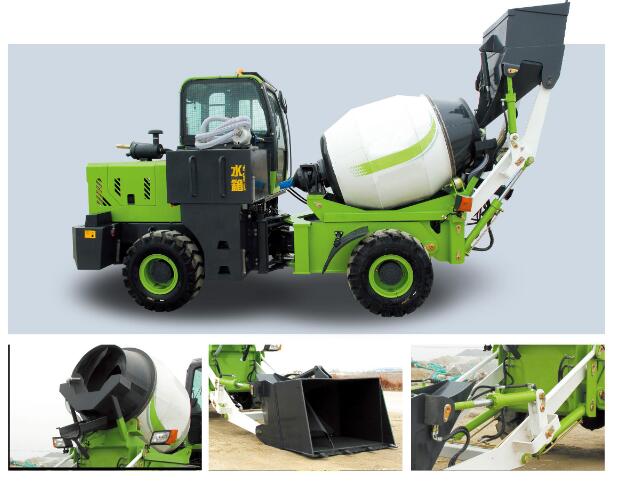

Description of 1.2m3 self loading mixer
HM-12 Self Loading Concrete Mixer Truck is a integration of mixer and wheel loader. It can automatically load, measure, mix and discharge concrete mixture.Cab and mixer drum can be integrated. Rolling drum can also be lifted up 20° to make discharge concrete easier. Rotational speed of mixer drum is up to 20 rpm that improves working efficiency by 30%.It makes mixer truck more safe and stable by using wet brake of front axle, air brake, double brake system and double front tires. Equipped with change-over switch, the centrifugal water pump can suck water into water tank and mixer drum respectively. 16mm thick high-strength steel plate, enhances load capacity and stability of the mixer truck.
Power Type：Diesel Engine
Wide Application Area: The 1.2m3 mixer size is small, which is suitable for limited place and widely used in new rural construction, urban construction, tunnel, airport, seaport, high-speed rail site, remote areas where there are no electric power, middle projects, farmer’s houses, building, country road, irrigation, reservoir, mine, rural bridges, high-way road etc, which characterized in saving labors, high efficiency concrete output.
Advantages Of Self Loading Concrete Mixer
- 1. Self-loading concrete mixture can rotate 270 degrees;
- 2. Self load, meter, mix and discharge;
- 3. Compact structure and easy movement—four wheels steering;
- 4. High working efficiency and less energy consumption;
- 5. High mixing quality and short mixing time.
- 6. The main hydraulic components are imported!
- 7. At least 5 workloads are saved per day!
- 8. Save electricity 100 degrees everyday without a mixer!
Technical Data:
| Vehicle Parameters | |

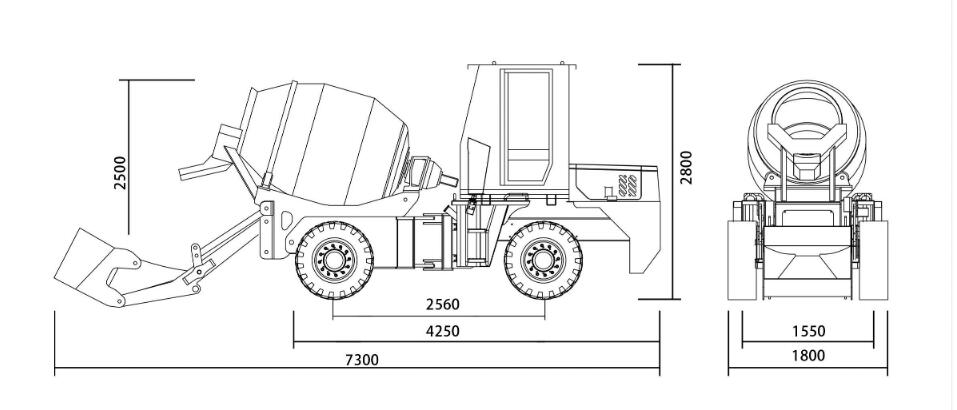

| Overall Dimensions (L × W × H) | 7300×1800×3450 |
| Wheelbase (mm) | 2560 |
| Curb Weight (kg) | 4185 |
| Drive Form | Torque converter |
| Maximum Speed (km / h) | 30 |
| Maximum Gradeability | 30° |
| Minimum Turning Radius (mm) | 4700 |
| Minimum Ground Clearance (mm) | 280 |
| Service Refill Capacities | |
| Fuel Tank: | 63 liters |
| Total Hydraulic System Capacity: | 63 liters |
| Oil: s | 16 liters |
| Diesel Engine | |
| Model: | Yunnei 490 Turbo-charged |
| Rated Power: | 55kw |
| Convention Parameters | |
| Equipment Model: | JBC-12 |
| Parameters of Hydraulic System | |
| Reducer: | KY07-2-0 |
| Dual Gear Pump: | CBFC 50/32 |
| Hydraulic Motor: | BM5-125 |
| Water Supply System Parameters | |
| Tank Volume: | 400L |
| Water Supply: | Time Relay |
| Mixing and Unloading |
| The double-cone mixing drum has double-spiral mixing screws and convex bottom. Mixing Drum Geometrical Capacity: ..... 1700L Drum Rotation Speed:.................... .13 rpm Concrete Yield: ............... 1.2 m3 / Batch |
