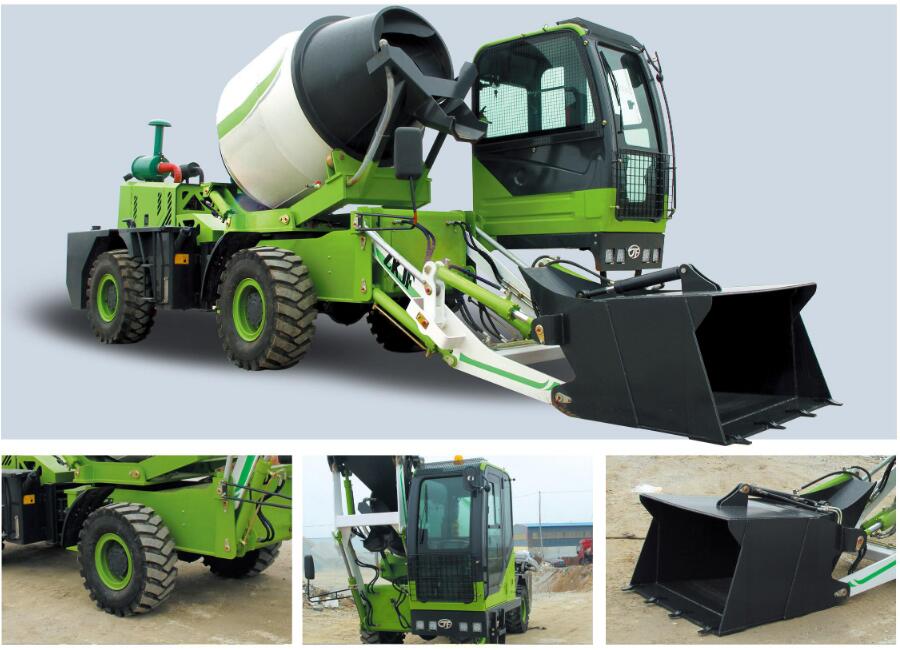

Description of 1.8m3 self loading mixer
Hm-1.8m3 self loading concrete mixer is a small concrete mixing equipment with the capacity of 1.5 cubic meters per batch. It takes about 8 minutes from loading the material to discharging the concrete.Hm-1.8 Self Loading Mobile Concrete Mixer Is Much More Efficient Than Hm-1.2 Self Mixer, It Can Help You Save Three Labors Costs Which Is Very Cost-Effective
Power Type：Diesel Engine
Wide Application Area:It is widely used for small and medium construction projects, such as road construction and repair, rural building, factory construction, tunnel, canal, and other projects requiring concrete.
Advantages Of Self Loading Concrete Mixer
- 1. Inner structure. We adopt national standard parts, can totally meet your demands.
- 2. Mixer tank. It can rotate at 270 degrees, so it can discharge concrete at 270 degrees, which is very convenient to place concrete.
- 3. Self loading design. It can automatically self loading, mixing, measuring and discharging.
- 4. Driving cab. There is only one person in cab. so it means when working, only need to employee one worker.
Technical Data:
| Vehicle Parameters | |

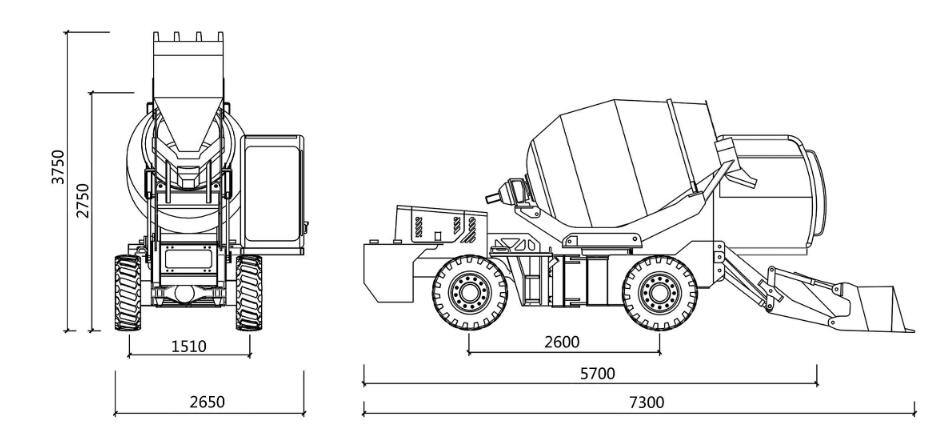

| Overall Dimensions (L × W × H) | 7300x2650x3750 |
| Wheelbase (mm) | 2600 |
| Curb Weight (kg) | 5666 |
| Drive Form | Torque converter |
| Maximum Speed (km / h) | 30 |
| Maximum Gradeability | 30° |
| Minimum Turning Radius (mm) | 5270 |
| Minimum Ground Clearance (mm) | 280 |
| Gearbox | |
| model | ZL-265 |
| Gearshift | 4 forward 4 back |
| Service Refill Capacities | |
| Fuel Tank: | 63 liters |
| Total Hydraulic System Capacity: | 63 liters |
| Oil: s | 16 liters |
| Diesel Engine | |
| Model: | Yunnei 490 Turbo-charged |
| Rated Power: | 55kw |
| Optional Engine | Yuchai 4102 Turbo-charged |
| Rated Power: | 78kw |
| Convention Parameters | |
| Equipment Model: | JBC-18 |
| Parameters of Hydraulic System | |
| Reducer: | HJ80-43 |
| Dual Gear Pump: | CBFC 50/40 |
| Hydraulic Motor: | BM5-160 |
| Water Supply System Parameters | |
| Tank Volume: | 400L |
| Water Supply: | Time Relay |
| Mixing and Unloading |
| The double-cone mixing drum has double-spiral mixing screws and convex bottom. Mixing Drum Geometrical Capacity: ..................... 2680L Drum Rotation Speed: .................... .13 rpm Concrete Yield: ............... 1.8 m3 / Batch The counterweight mounted on the heavy duty saddle can be hydraulically slewed at 270 ° and automatically locked by a hydraulic brake. The drum rotation is achieved by gear pump and cycloidal hydraulic motor in open circuit with a manual electric valve in the driver's cabin and in the rear of the mixer. The drum rises to horizontal position through two double-acting jacks. The unloading chute is tilted by a manually adjustable handle and can be rotated by 90 °, but can not be synchronized with the tilting operation of mixing drum. Removable chutes ensure unloading directly through the hopper. Two chute extensions are provided as standard. |
