Self Loading Mixer With Pump

Self Loading Mixer With Pump

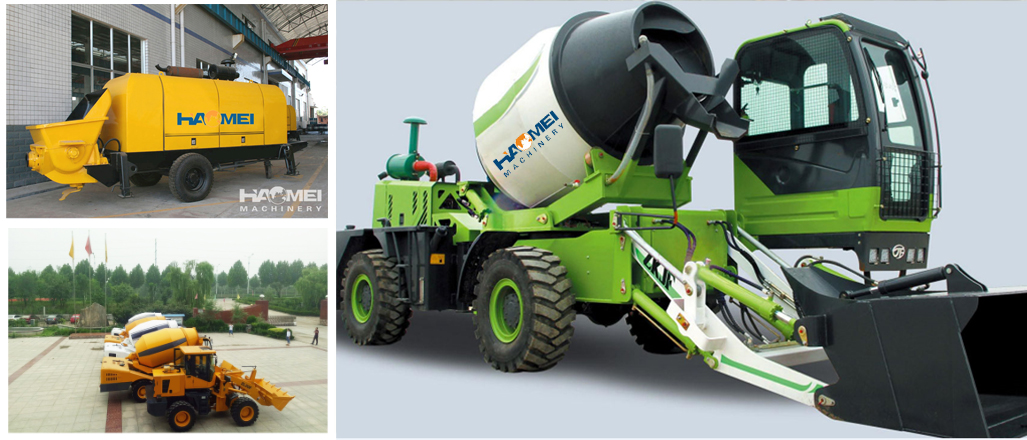

Self loading concrete mixer with pump includes self loader concrete mixer truck and concrete trailer pump, which can be used alone or in combination.

  • Self-feeding mixers capacity:

    1.2 - 6.5 m³ /h
  • Pump capacity:

    60-80m³/h

Description of Self Loading Mixer With Pump

Self loading concrete mixer with pump is an efficient combination of self loading concrete mixer with concrete trailer pump. Self loading concrete mixer is used for mixing the fresh concrete, and a concrete pump is used for pumping the fresh concrete to the destination through the pipeline horizontally or vertically. The price of buying the combination is lower than buying two pieces of equipment individually.
Self loading concrete mixer with pump is used to produce and transport concrete on-site, because self-loading design, which greatly improves the working efficiency. It is the most popular concrete machine among Haomei Machinery and has good sales volume. As you can see from our cases, there are large demands for our self loading rough terrain concrete mixers.

Wide Application Area:The self loading concrete mixer with pump is suitable for on-site concrete pouring projects, such as residential construction, road construction, bridge projects, etc. It is capable of both mixing and transporting concrete, offering a flexible and efficient solution for concrete construction on construction sites.

Advantages Of Self Loading Concrete Mixer

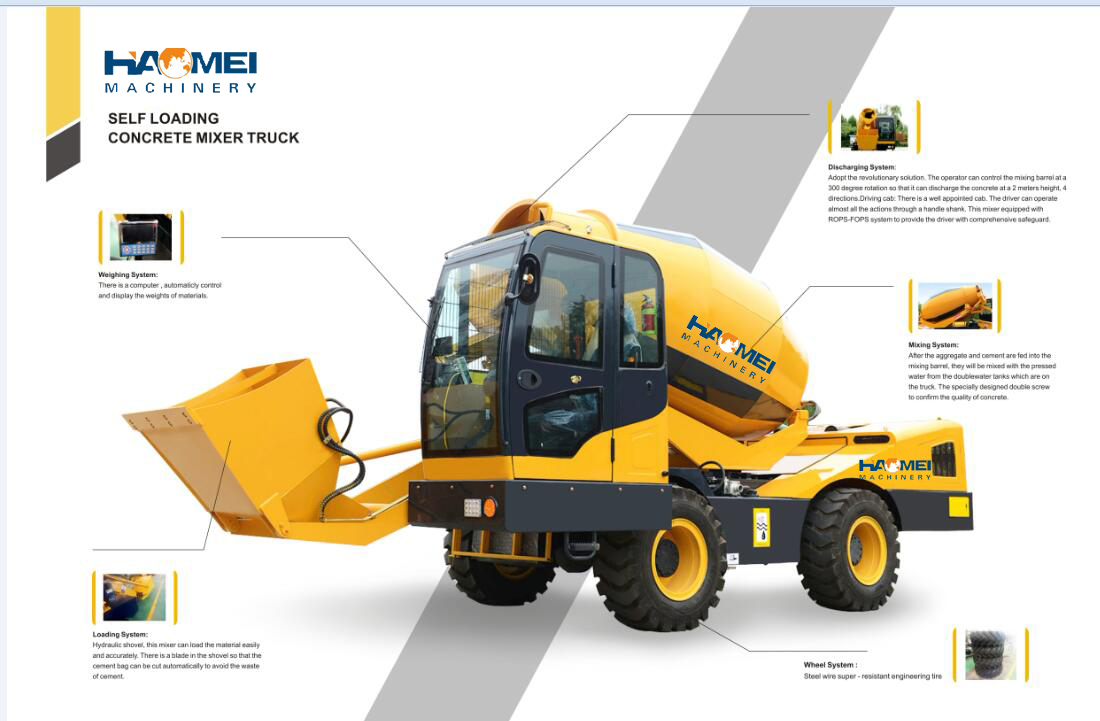

 6.5m3 self loading mixer

  • The self-loading truck is equivalent to a small mobile concrete mixing station. A self-loading truck can replace the loader and mixer. The purchase cost of the machine is saved.
  • Self-loading truck is equipped with the electronic weighing device, and the quality of concrete is higher than that of the ordinary mixer.
  • Self-loading concrete mixer with pumps can be used in remote mountainous areas with poor road conditions.
  • The combination of self-loading and pump can solve the problem from concrete production to pumping in a one-stop way. The whole process only needs 3 to 4 workers, improving production efficiency and saving labour costs.

Technical Data:

 5.5 self loading mixer

Self Loading Mixer

Model HM-1.2 HM-1.8/2.0 HM-2.6 HM-3.5 HM-4.0 HM-5.5 HM-6.5
Discharge capacity 1m3 1.5m3 2.4m3 3m3 4.0m3 5m3 6m3
Output/H 10 12m3 16.8m3 18m3 20m3 25m3 30m3
Engine YUNNEI YUCHAI YUCHAI YUCHAI YUCHAI XICHAI WEICHAI
Rated power (KW) 58 78 78 85 91 92-110 92-110
Oil tank (L) 16 16 16 16 16 16 16
Water tank(L) 400 500 500 620 660 860 1465
Drum rotate 270° 270° 270° 270° 270° 290°

concrete trailer pump

Item Unit HBT100 HBT80 HBT60
Theory Concrete Output
(Low / High Pressure)
m3/h 106/72 85/42 60
Concrete Pressure
(Low / high pressure)
Mpa 20/14 13.5/8 13/7.4
Hydraulic system pressure Mpa 32 32 32
Rotation speed r/min 1480 1480 1480
High / low pressure switch   Yes Yes Yes
Distribution valve   S valve S valve S valve
Pumping cylinder diameter/ Stroke mm 200/1800 200/1800 195/1500
Main oil pump discharge ml/r 2×190 224 110
Motor power kw 2×161 110 145
Voltage/ Frequency V/Hz 380/50 380/50 380/50
Hydraulic tank volume L 700 500 400
Height of adding material mm 1400 1400 1355
Hopper volume m3 0.7 0.7 0.8
Total mass kg 8500 6200 5800
Concrete slump mm 100~230 120-200 120-230
Aclinic Delivery distance  m 2000 1000 1200
Theory vertical pumping height m 410 250 250
Dimension: L*W*H mm 6600*2400*2700 6680*2210*2150 6240*2110*2550
