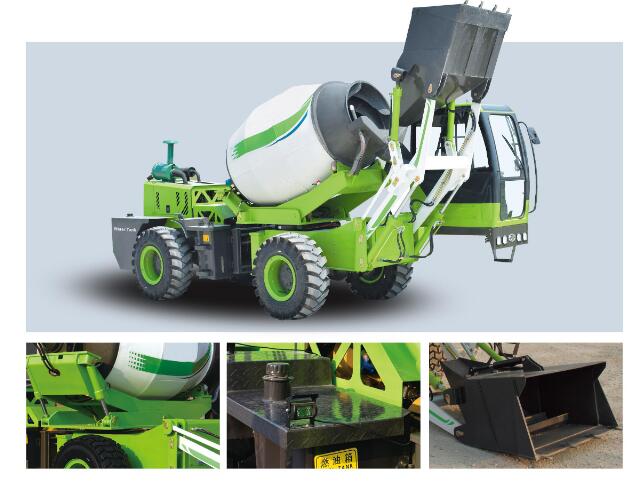

Description of 2.6m3 self loading mixer
Compared with the mobile concrete batching plant, HM2.6 cubic self loading concrete mixer price is far more cheaper and no need of complicated installation. It is an ideal equipment for the concrete production in remote places.
Haomei self loading mobile concrete mixer features intelligent control, powerful engine, four wheel drive and 270 degree unloading. In addition to superior mobility, it combines loading, mixing, transport, discharging, pumping and washing.
Power Type：Diesel Engine
Wide Application Area:Self-loading concrete mixer is mainly used in large building construction and infrastructure construction, such as bridges, tunnels, highways, water conservancy projects, etc. The self-loading concrete mixer truck can mix and transport concrete on site, thus improving the construction efficiency and concrete quality.
Advantages Of Self Loading Concrete Mixer
- 1. Inner structure. We adopt national standard parts, can totally meet your demands.
- 2. Mixer tank. It can rotate at 270 degrees, so it can discharge concrete at 270 degrees, which is very convenient to place concrete.
- 3. Self loading design. It can automatically self loading, mixing, measuring and discharging.
- 4. Driving cab. There is only one person in cab. so it means when working, only need to employee one worker.
Technical Data:
| Vehicle Parameters | |

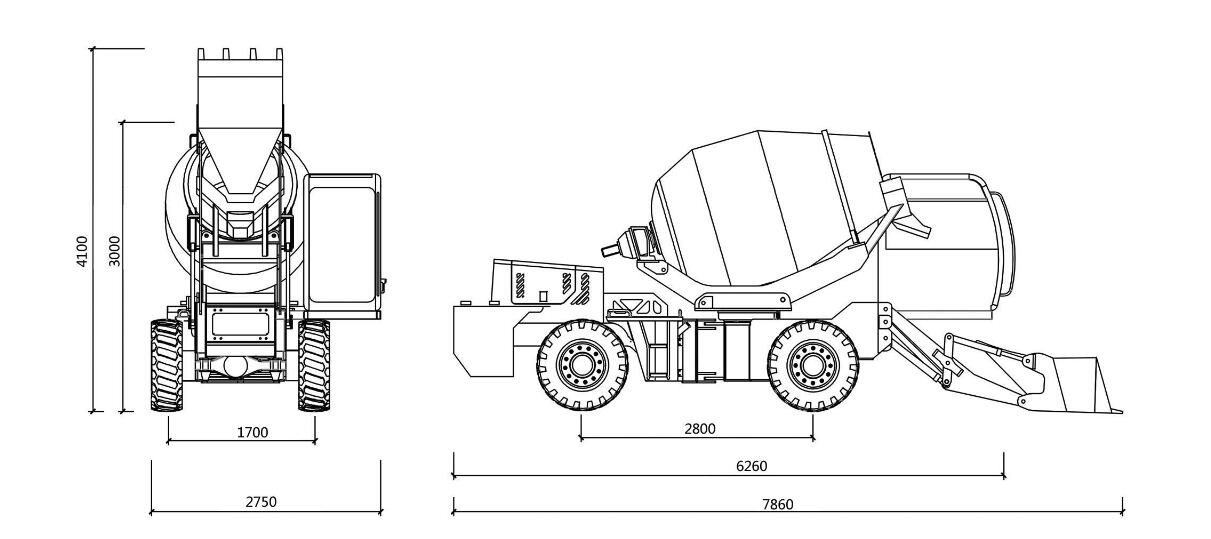

| Overall Dimensions (L × W × H) | 7860*2750*4100 |
| Wheelbase (mm) | 2800 |
| Curb Weight (kg) | 6500 |
| Drive Form | Torque converter |
| Maximum Speed (km / h) | 30 |
| Maximum Gradeability | 30° |
| Minimum Turning Radius (mm) | 5300 |
| Minimum Ground Clearance (mm) | 380 |
| Gearbox | |
| model | ZL-280 power shift transmission |
| Gearshift | 4 forward 4 back |
| Service Refill Capacities | |
| Fuel Tank: | 75 liters |
| Total Hydraulic System Capacity: | 75 liters |
| Oil: s | 16 liters |
| Diesel Engine | |
| Model: | Yuchai 4102 Turbo-charged |
| Rated Power: | 78kw |
| Optional Engine | |
| Rated Power: | |
| Convention Parameters | |
| Equipment Model: | JBC-26A |
| Parameters of Hydraulic System | |
| Reducer: | HJ80-43 |
| Dual Gear Pump: | CBG9 2050/2032 |
| Hydraulic Motor: | BM5-160 |
| Water Supply System Parameters | |
| Tank Volume: | 500L |
| Water Supply: | Time Relay |
| Mixing and Unloading |
| The double-cone mixing drum has double-spiral mixing screws and convex bottom. Mixing Drum Geometrical Capacity: ..................... 3000L Drum Rotation Speed: .....................13 rpm Concrete yield: ............... 2.6m3 / Batch The counterweight mounted on the heavy duty saddle can be hydraulically slewed at 270 ° and automatically locked by a hydraulic brake. The drum rotation is achieved by gear pump and cycloidal hydraulic motor in open circuit with a manual electric valve in the driver's cabin and in the rear of the mixer. The drum rises to horizontal position through two double-acting jacks. The unloading chute is tilted by a manually adjustable handle and can be rotated by 90 °, but can not be synchronized with the tilting operation of mixing drum. Removable chutes ensure unloading directly through the hopper. Two chute extensions are provided as standard. |
