Self Loading Transit Concrete Mixer

Self Loading Transit Concrete Mixer

A self-loading transit concrete mixer can load, mix, transport, and unload concrete at a fixed point. It can automatically produce and transport concrete on-site

  • Discharge Capacity:

    6500L
  • Output capacity:

    6.5M3
  • Mixing drum capacity:

    9000 L
  • Water tank:

    1465L

Self Loading Transit Concrete Mixer

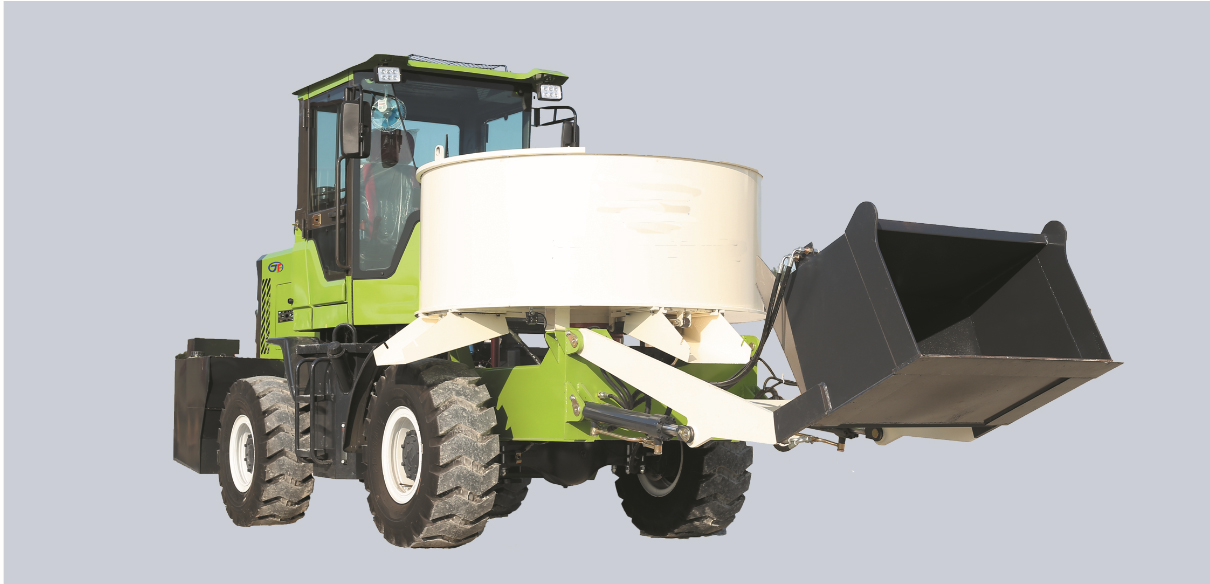

Self loading concrete mixer is the combination of concrete mixer and transit mixer. It can automatically feed, weigh, mix and discharge concrete, which greatly improve the work efficiency, reduce production cost and time. Equipped with a powerful engine and 4 wheels steering, the self loading concrete mixer is just like a small truck and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. All working from feeding material to discharging concrete can be done by one operator.
We can offer you various types and capacities of self-feeding mixers: 1.2 m³ , 1.5 m³, 1.8 m³ , 2.0 m³ , 2.6 m³ , 3.5 m³ , 4.0 m³ , 5.5 m³

Power Type:Diesel Engine

Wide Application Area:Self loading concrete mixer truck is widely used in house building, country road, irrigation, reservoir, mine, rural bridges, tunnel, road repair and construction, especially in remote mountainous areas or places without electricity.

Advantages Of Self Loading Concrete Mixer

 Self Loading Transit Concrete Mixer

  • Mobile concrete mixer feature combines self-loading,weighting,mixing and discharging,it can maximize and improve the job efficiency and reduce the production cost and time.
  • The clever discharge cone is designed,to provide stronger material sealing capacity and higher filling rate,thus improving the loading capacity of the tank up to 6%.
  • Loading capacity is larger for the same volume.
  • The center of gravity is low for the same loading capacity.
  • Swing tank easy discharge to different way.
  • Tank and blades are made of high-strength wear-resistant steel,with service life increased by 30%.
  • Hoppers and detachable chutes are made of multilayer high-strength wear-resistant liner plate,with service life increased by 50%.
  • Overall machine features attractive appearance,smooth stream line,perfect streamlined hopper,arc-shaped rear support,and full steel catwalk,giving more attractive design to provided you a new experience.
  • As the complete vehicle is equipped with four-wheel drive,it can be used for efficient and stable concrete production in harsh working conditions.
  • It can be used for aggregate weighing in the process of loading,thus ensuring that concrete meets the construction requirements and weighing precision within ±3%.
  • Unique continuous trace design is used,with residual rate≤0.4%.
  • Large gliding angle is designed at rear cone,to ensure fast discharge at idle speed.
  • Integrated control is used with one-inlet and multiple-outlet applied,convenient and fast.

Technical Data:

 Self Loading Transit Concrete Mixer

>Model HM1200 HM1600 HM1800 HM2000 HM2600 HM3200
Capacity (m3) 1.2 1.6 1.8 2 2.6 3.2
Engine power(HP) 60 82 104 114 140 140
Tire 1000-16 20.5/70-16 20.5/70-16 16/70-20 15/70-20 Double tire
Brake system Oil brake Oil brake/air brake Wheel side air brake Wheel side air brake Wheel side air brake Big wheel side air brake
Drive mode 4WD 4WD 4WD 4WD 4WD 4WD
Gearbox Mechanical gearbox Full hydraulic stepless gearbox Full hydraulic stepless gearbox Full hydraulic stepless gearbox Full hydraulic stepless gearbox Full hydraulic stepless gearbox
Turning system Hydraulic turning Hydraulic turning Hydraulic turning Hydraulic turning Hydraulic turning Hydraulic turning
Dimension(mm) 4400*1600*2700 4800*1800*2750 4900*1800*2800 5000*1800*2800 5200*2000*2900 5400*2100*2950
